Motoreduktory walcowe proste CHC moc silnika 2,2kW
|
|

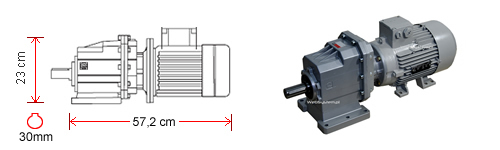

• Wymiary 2D DWG |
| Lp. | Symbol |
n2 [r/min] |
m2 [Nm] |
Przełożenie i | Współczynnik fs |
Cena zł netto |
| 203 | Motoreduktor CHC30-P-21,7-P-2,2kW | 65.66 | 297 | 21.7 | 0.5 | {web=CHC30-P-21,7-P-2,2kW} |
| 204 | Motoreduktor CHC30-P-17,3-P-2,2kW | 82.36 | 237 | 17.3 | 0.7 | {web=CHC30-P-17,3-P-2,2kW} |
| 205 | Motoreduktor CHC30-P-15,0-P-2,2kW | 95 | 205 | 15.0 | 1.0 | {web=CHC30-P-15,0-P-2,2kW} |
| 206 | Motoreduktor CHC30-P-12,3-P-2,2kW | 115.85 | 168 | 12.3 | 1.1 | {web=CHC30-P-12,3-P-2,2kW} |
| 207 | Motoreduktor CHC30-P-10,2-P-2,2kW | 139.70 | 139.5 | 10.2 | 1.3 | {web=CHC30-P-10,2-P-2,2kW} |
| 208 | Motoreduktor CHC30-P-7,9-P-2,2kW | 177 | 114 | 7.9 | 1.6 | {web=CHC30-P-7,9-P-2,2kW} |
| 209 | Motoreduktor CHC30-P-5,5-P-2,2kW | 255 | 79 | 5.5 | 1.9 | {web=CHC30-P-5,5-P-2,2kW} |
|
|
• Wymiary 2D DWG |
| Lp. | Symbol |
n2 [r/min] |
m2 [Nm] |
Przełożenie i | Współczynnik fs |
Cena zł netto |
| 210 | Motoreduktor CHC35-P-34,6-P-2,2kW | 41.18 | 473 | 34.6 | 1.0 | {web=CHC35-P-34,6-P-2,2kW} |
| 211 | Motoreduktor CHC35-P-28,3-P-2,2kW | 50.35 | 387 | 28.3 | 1.3 | {web=CHC35-P-28,3-P-2,2kW} |
| 212 | Motoreduktor CHC35-P-21,7-P-2,2kW | 65.66 | 297 | 21.7 | 1.4 | {web=CHC35-P-21,7-P-2,2kW} |
| 213 | Motoreduktor CHC35-P-17,3-P-2,2kW | 82.36 | 237 | 17.3 | 1.6 | {web=CHC35-P-17,3-P-2,2kW} |
| 214 | Motoreduktor CHC35-P-15,1-P-2,2kW | 94.37 | 206.5 | 15.1 | 1.9 | {web=CHC35-P-15,1-P-2,2kW} |
| 215 | Motoreduktor CHC35-P-12,3-P-2,2kW | 115.85 | 168 | 12.3 | 1.9 | {web=CHC35-P-12,3-P-2,2kW} |
| 216 | Motoreduktor CHC35-P-10,2-P-2,2kW | 139.70 | 139.5 | 10.2 | 1.8 | {web=CHC35-P-10,2-P-2,2kW} |
| 217 | Motoreduktor CHC35-P-7,9-P-2,2kW | 177 | 114 | 7.9 | 2.3 | {web=CHC35-P-7,9-P-2,2kW} |
| 218 | Motoreduktor CHC35-P-5,5-P-2,2kW | 255 | 79 | 5.5 | 2.9 | {web=CHC35-P-5,5-P-2,2kW} |
|
|

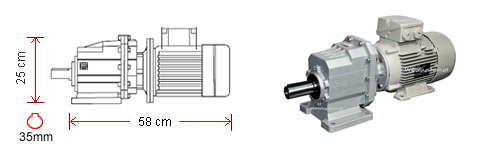

• Wymiary 2D DWG |
| Lp. | Symbol |
n2 [r/min] |
m2 [Nm] |
Przełożenie i | Współczynnik fs |
Cena zł netto |
| 219 | Motoreduktor CHC40-P-34,6-P-2,2kW | 41.18 | 473 | 34.6 | 1.0 | {web=CHC40-P-34,6-P-2,2kW} |
| 220 | Motoreduktor CHC40-P-28,3-P-2,2kW | 50.35 | 387 | 28.3 | 1.3 | {web=CHC40-P-28,3-P-2,2kW} |
| 221 | Motoreduktor CHC40-P-21,7-P-2,2kW | 65.66 | 297 | 21.7 | 1.4 | {web=CHC40-P-21,7-P-2,2kW} |
| 222 | Motoreduktor CHC40-P-17,3-P-2,2kW | 82.36 | 237 | 17.3 | 1.6 | {web=CHC40-P-17,3-P-2,2kW} |
| 223 | Motoreduktor CHC40-P-15,1-P-2,2kW | 94.37 | 206.5 | 15.1 | 1.9 | {web=CHC40-P-15,1-P-2,2kW} |
| 224 | Motoreduktor CHC40-P-12,3-P-2,2kW | 115.85 | 168 | 12.3 | 1.9 | {web=CHC40-P-12,3-P-2,2kW} |
| 225 | Motoreduktor CHC40-P-10,2-P-2,2kW | 139.70 | 139.5 | 10.2 | 1.8 | {web=CHC40-P-10,2-P-2,2kW} |
| 226 | Motoreduktor CHC40-P-7,9-P-2,2kW | 177 | 114 | 7.9 | 2.3 | {web=CHC40-P-7,9-P-2,2kW} |
| 227 | Motoreduktor CHC40-P-5,5-P-2,2kW | 255 | 79 | 5.5 | 2.9 | {web=CHC40-P-5,5-P-2,2kW} |
